Passive Acoustic Drone Detection — Built for the Frontline

BeephoniX M2 delivers 3D situational awareness through real-time sound analysis. With 151 MEMS microphones and AI-driven classification, this lightweight sensor array detects, tracks, and identifies Class I–II drones — even in GPS-denied or visually obstructed environments.

Strategic Advantage of Acoustic Detection

Conventional drone detection methods—radar, RF scanning, and visual tracking—each have limitations in complex terrain, dense urban environments, or GPS-denied zones. Acoustic sensing offers a unique operational edge in these scenarios:

  • Undetectable by adversaries – Acoustic sensing is fully passive; no emissions, no signal signature
  • Line-of-sight independence – Sound waves propagate beyond visual barriers via diffraction and atmospheric refraction
  • Payload detection – Irregular rotor speed patterns can reveal payload anomalies (e.g. explosives or surveillance gear)
  • Non-spoofable – Unlike RF or GNSS-based systems, drones cannot mute or fake their acoustic footprint

System Architecture & Detection Methodology

The BeephoniX M2 is a bio-inspired, AI-enhanced acoustic detection system. It captures and processes spatial sound data with ultra-high sensitivity using 151 MEMS microphones per unit. Combined with an optional integrated optical module, the system enables precise threat detection and classification in real time.



Key design elements:



    • Real-time beamforming and sector-based scanning with embedded edge processing
    • Automatic drone classification based on rotor sound profiles, filtering environmental noise
    • Scalable array networking for 3D detection coverage up to a 500-meter radius
    • Optional visual augmentation via integrated camera for threat validation

To maximize acoustic performance:



  • The sensor array is embedded within a custom-designed conical foam cushion layer that funnels ambient sound to the microphones
  • It is enclosed in a hydrophobic acoustic mesh—water-repellent yet sound-permeable—ensuring durability without loss of sensitivity

BeephoniX M2 – Technical Specifications

  • Detection range (per array): up to 200 meters
  • Networked 3D detection coverage: up to 500 meters
  • Sensor payload: 151 MEMS microphones + integrated optical camera
  • Weight: 950 grams

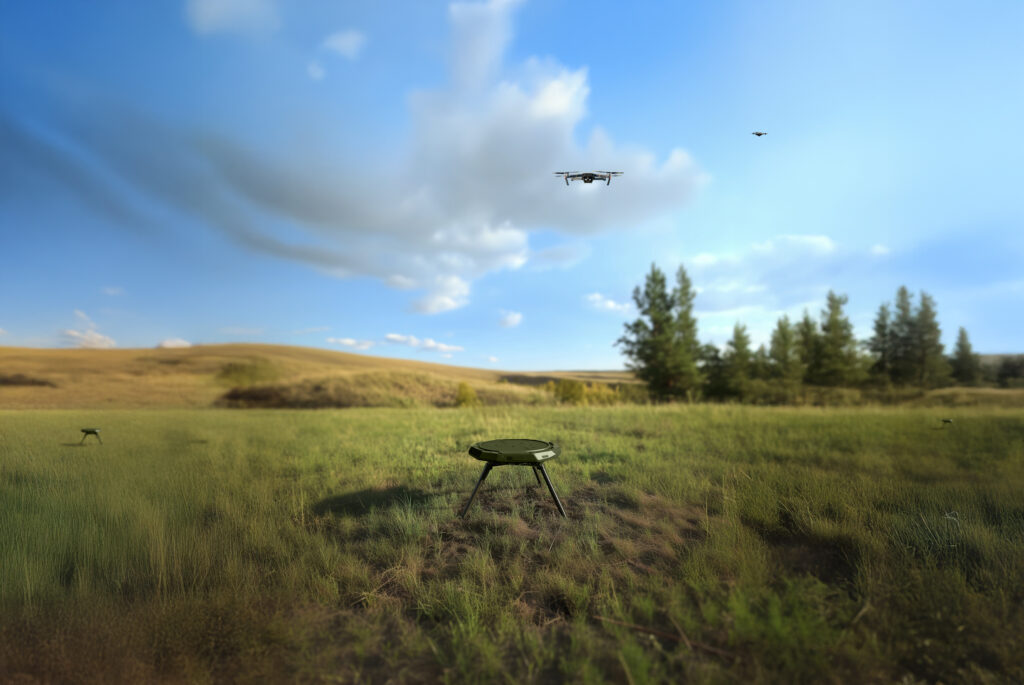

  • Deployment: person-portable; tripod- or mast-mountable
  • Power: battery, solar, or external power options
  • Enclosure: rugged, weather-resistant mesh; no moving parts

Operational Domains

  • Protection of government buildings, military outposts, and critical infrastructure
  • Tactical deployment in field operations and forward observation posts
  • Crowd security at high-risk events and public gatherings
  • Border surveillance and covert perimeter monitoring

Join the Pilot Program

BeephoniX is currently expanding its pilot program in cooperation with defense and homeland security stakeholders. Interested parties are invited to co-develop and test the system in live operational environments.
